BP Type Turbo Blowers

"Type BP"


DESIGNED FOR LOW PRESSURE AND HIGH FLOW APPLICATIONS
Power: 0.25, 0.5, 1, 2, 3, 5HP
Motor: 2 Poles
Motor - TEFC IP54 Grade F Insulation
Permitted maximum ambient temperature is 40ºC
BP type turbo blowers feature direct drive motors from 0.5 HP to 5 HP, and provide a maximum pressure of 300 mmAq, and a maximum air capacity of 35 CMM. Showfou BP Type centrifugal turbo blower has a Large flow, lower noise and high efficiency due to special impeller design.


FEATURES :


Light Weight – Aluminum alloy housing
Low Noise and Vibration.
Designed for Easy Installation.
Versatile capabilities for Vacuum or Pressure Operation.
Low Maintenance Durability.
TEFC enclosure eliminates atmospheric contamination of motor winding and bearings.
The turbo blower built-in with flow regulating disc on the inlet:” Type BL” is also available.


APPLICATIONS:


Printing Machines.
Dust Collectors.
Textile Machines.
Woodworking Machines.
Grain Elevators.
Incinerators.
Dryer Machines.
Plastic Extruders.
Burning Machines.

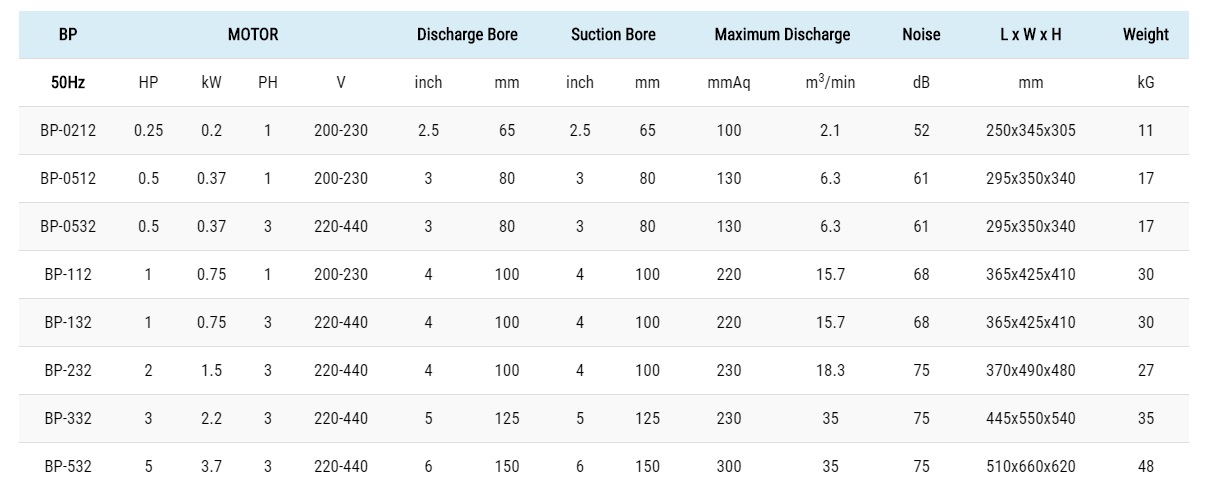

BP Type Turbo Blowers

"Specification 50Hz"
